Hoops

The RLBot framework support the Hoops game mode. This page contains useful values specifically about Hoops.

To make RLBot start a Hoops game you have to set the following values in rlbot.cfg:

game_mode = Hoops
# Alternative map: Hoops_TheBlocks
game_map = Hoops_DunkHouse

Arena

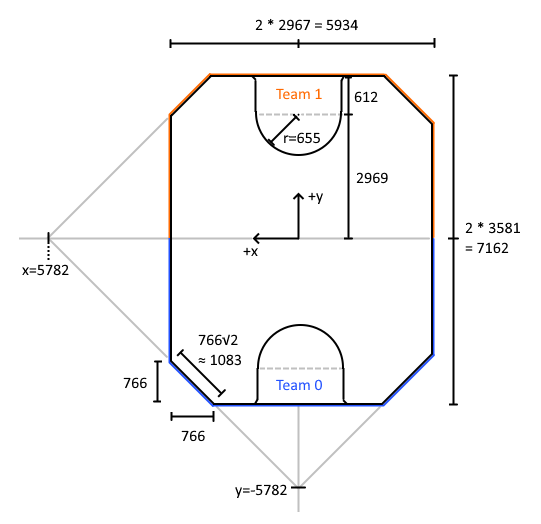

Hoops is usually played on the map Dunk House or The Block. The dimensions for the arena are:

  • Floor z: 0
  • Side wall x: ±2966.67
  • Back wall y: ±3581
  • Ceiling z: 1820
  • The diagonal walls intersect the x and y axes at: ±5782
  • Wall bottom ramp radius: 172

Goals

In Hoops, the goals are two rings. The rings are semi-circles placed (0, ±2969, 364) with radius 655 and they are connected to the wall with straight lines (except a small curve near the walls). The pipe that makes up the ring has a diameter of approximately 42.

Boost Pads

There are 20 boost pads on a Hoops arena, 6 of them are big.

Big boost pads are located at (±2176, ±2944, 8) and (±2432, 0, 8).

Locations of all boost pads:

[ 2176, -2944, 8] (0)
[-2176, -2944, 8] (1)
[    0, -2816, 0] (2)
[-1280, -2304, 0] (3)
[ 1280, -2304, 0] (4)
[-1536, -1024, 0] (5)
[ 1536, -1024, 0] (6)
[  512,  -512, 0] (7)
[ -512,  -512, 0] (8)
[-2432,     0, 8] (9)
[ 2432,     0, 8] (10)
[  512,   512, 0] (11)
[ -512,   512, 0] (12)
[-1536,  1024, 0] (13)
[ 1536,  1024, 0] (14)
[-1280,  2304, 0] (15)
[ 1280,  2304, 0] (16)
[    0,  2816, 0] (17)
[-2176,  2944, 8] (18)
[ 2176,  2944, 8] (19)

Note: Some of these coordinates have been rounded.

Ball

The radius of the ball is 98.38. When the kickout countdown hits zero, the ball is given a Z velocity of 1000. But other than that, the physics of the ball is similar to soccer.

Spawning

Kickoff Blue Orange
Right corner loc: (-1536, -3072), yaw: 0.5 pi loc: (1536, 3072), yaw: -0.5 pi
Left corner loc: (1536, -3072), yaw: 0.5 pi loc: (-1536, 3072), yaw: -0.5 pi
Back right loc: (-256, -2815), yaw: 0.5 pi loc: (256, 2815), yaw: -0.5 pi
Back left loc: (256, -2815), yaw: 0.5 pi loc: (-256, 2815), yaw: -0.5 pi
Far back center loc: (0, -3200), yaw: 0.5 pi loc: (0, 3200), yaw: -0.5 pi
Demolished Blue Orange
Right corner loc: (-1152, -3072), yaw: 0.5 pi loc: (1152, 3072), yaw: -0.5 pi
Left corner loc: (1152, -3072), yaw: 0.5 pi loc: (-1152, 3072), yaw: -0.5 pi
